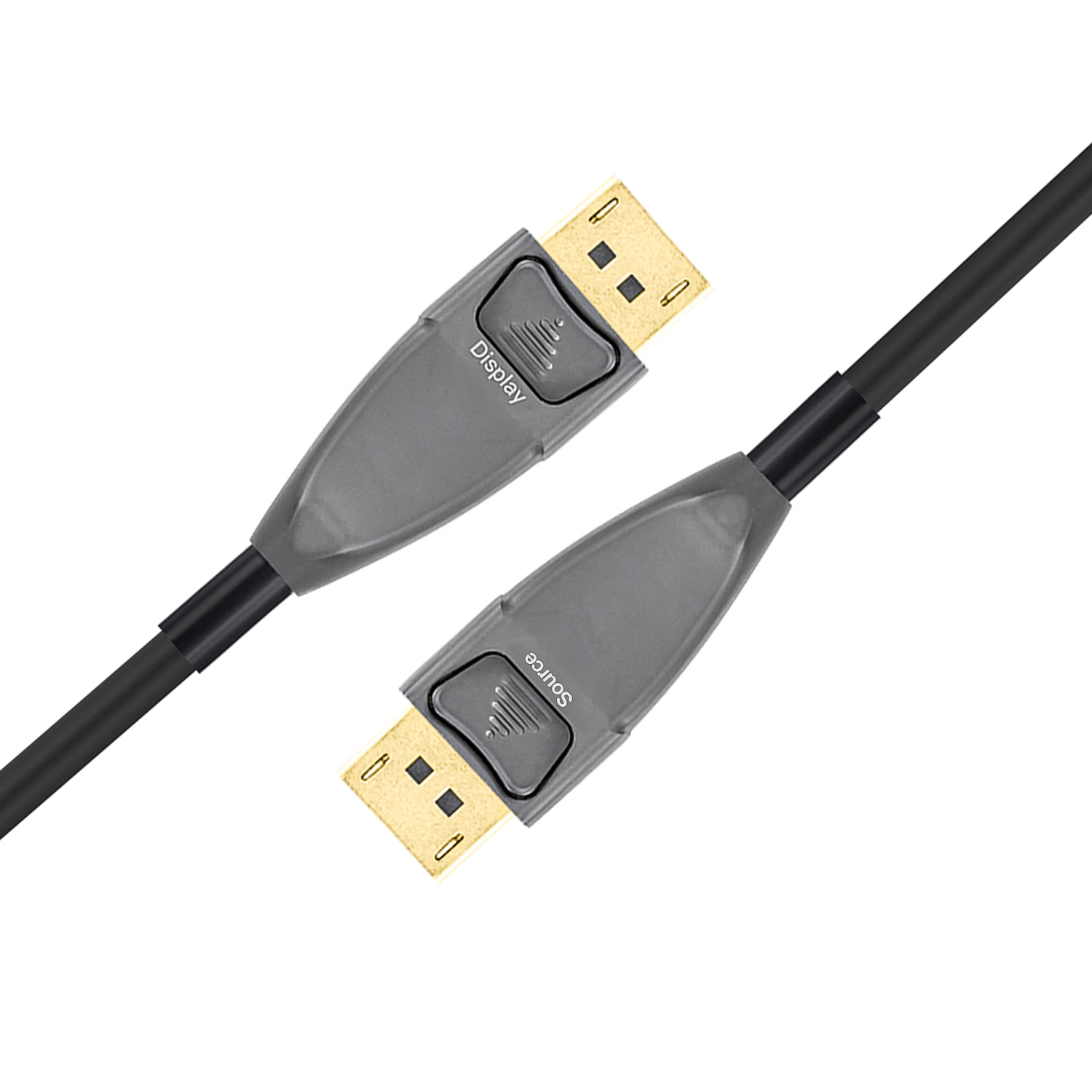

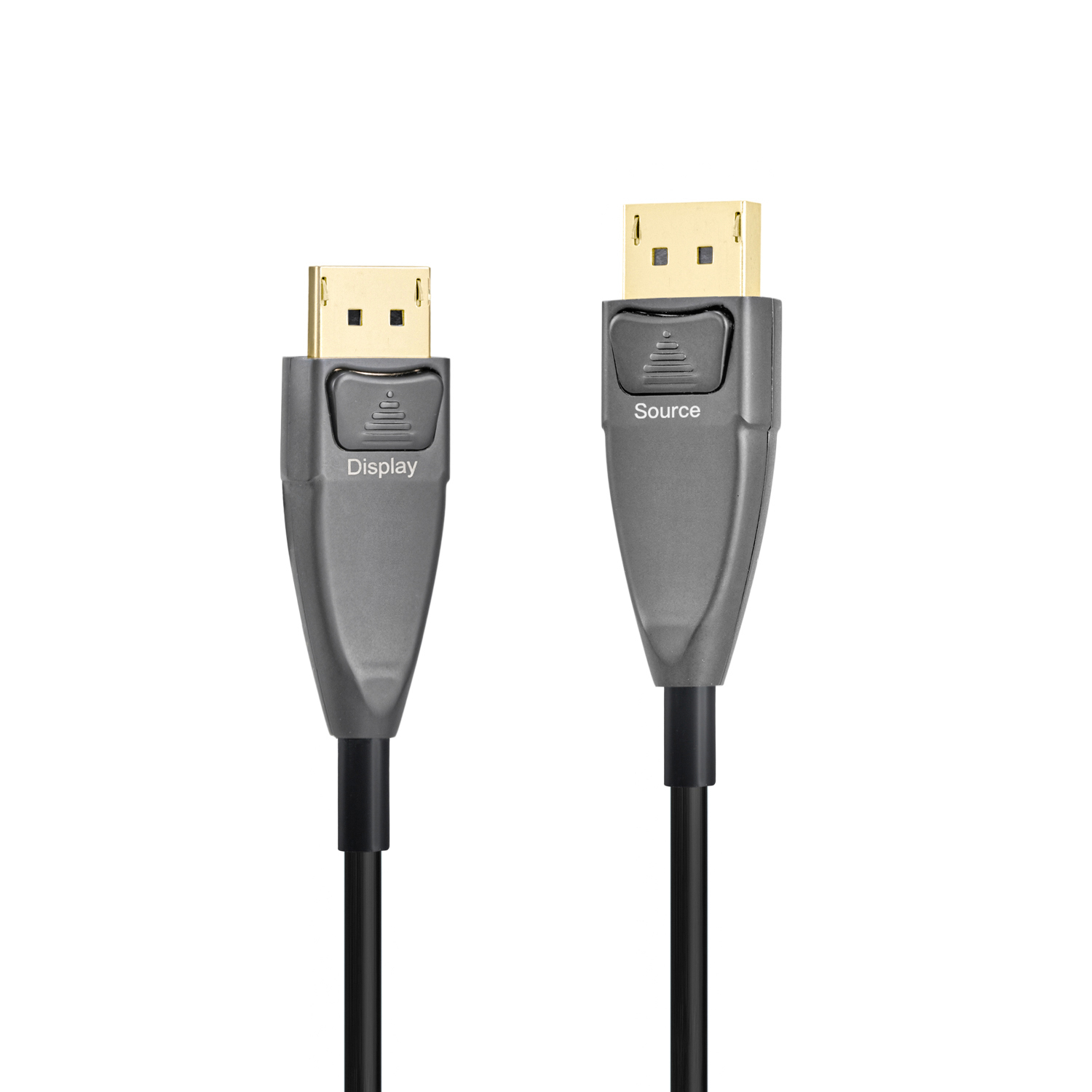

DP 2.0 Active Optical Cable

DP 2.0 Active Optical Cable

SDFC-2040 Smartavlink DP 2.0 AOC is new Audio/Video cable , UHD signal transmission depending on optical fiber,support length become much longer (above 100m) ,but also signal quality is much more stable , lower EMI/EMC, especially can support 10Gbps bandwidth per channel,40Gbps total . Support 8K@60Hz and 4K@144Hz, meets DP2.0 UHBR10 DP40 40Gbps Standard,It is a mature & competitive solution in the high speed signal transmission application . This optical fiber cable can be applied to computer with DP interface , Displays outdoor , LED signboards in streets / stadiums and Security System , that transfer audio video signal .

Category:

Description

◆Support 8K@60Hz , Supports HBR10, HDCP 1.4 / 2.2; very good compatibility;

◆Support DP2.0 UHBR10 standard, bandwidth can reach 10 Gbps per channel, 40Gbps total;

◆Support length up to 100m max, custom length is optional;

◆Hybrid fiber and copper,OD 4.8 mmonly, high flexible, slim and light;

◆Plug & Play, no firmware, no need external power supply;

◆LowerEMI / EMC for strict applications.
