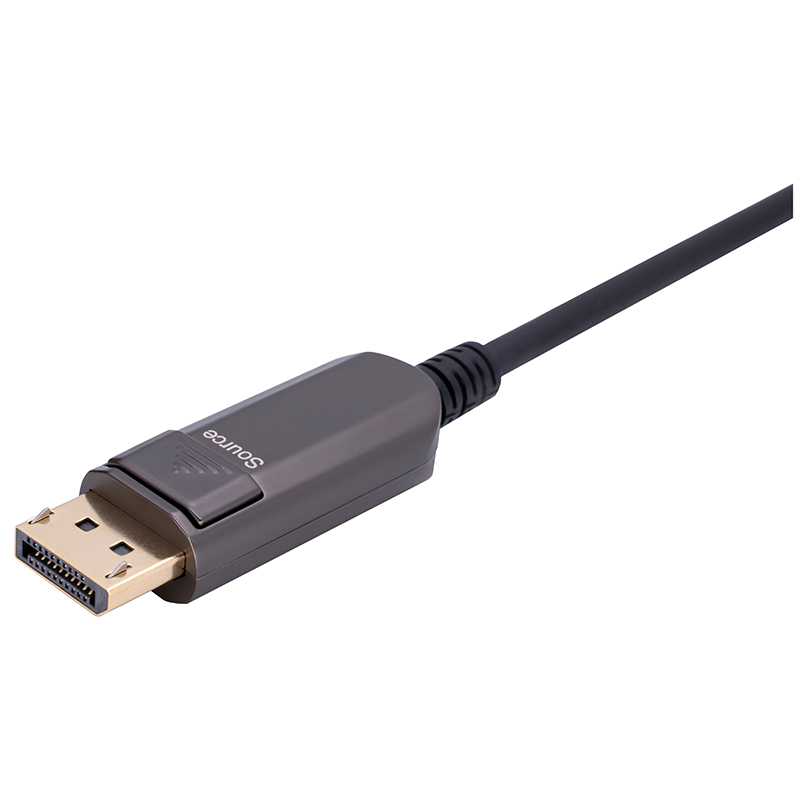

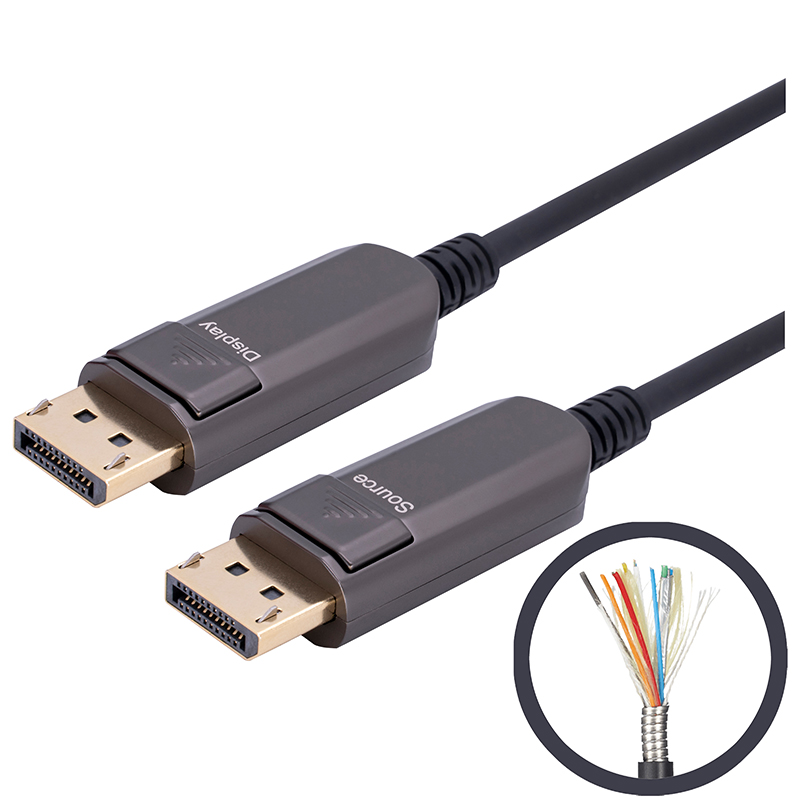

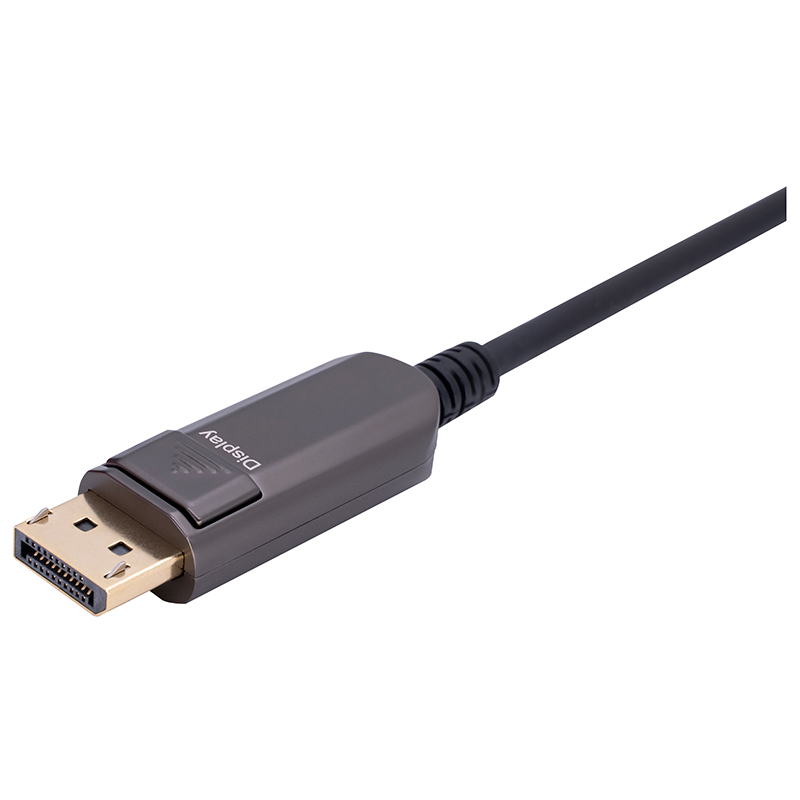

Armored DP 1.4 Active Optical Cable

Armored DP 1.4 Active Optical Cable

SADC-1400 Smartavlink Patent Armored DP 1.4 AOC is our new Audio/Video cable , HD signal transmission depending on optical fiber,not only its support length become much longer (above 100m) ,but also signal quality is much more stable , no EMI completely, especially can support 8.1Gbps bandwidth per channel ,32Gbps total . Support 8K,meets DP1.4 Standard,It is a mature & competitive solution in the high speed date transmission market . This optical fiber cable can be applicated to computer with DP interface , Displays outdoor , LED signboards in streets / stadiums and Security System , that transfer audio video signal.

Category:

Description

◆ 200CU stainless steel construction;
◆ Support 8K@60Hz , Supports HBR3, HDCP 1.4 / 2.2; very good compatibility;
◆ Support DP1.4 standard, bandwidth can reach 8.1 Gbps per chanel, 32Gbps total;
◆ Support length up to 100m max , length custom is available;
◆ Hybrid fiber and copper, much more slim and light;
◆ Low RFI / EMI profile for sensitive applications;
◆ Crush Resistance: Long term100kg ; Short term 200kg.
