USB 3.0 Hybrid Active Optical Cable Design & Specification
Marketing requirement on Data transfer is raising up day by day.
USB as best interface for data transfering is woldwide accept by end-user, Smartavlink developed the new generation USB Active Optical Cable to on Long distance, no signal compress, is good new selection.

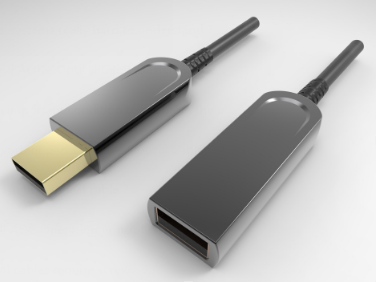

The USB 3.0 Active Optical Cable (AOC) is a USB 3.0 electrical to optical conversion module. This product can translate signals between USB 3.0 electrical and optical signals. AOC is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber “between the connectors”. Ordinary USB3.0 active fiber cable’s defect that can’t supply power to device. AOC offer a quick solution to supply longer cable for USB3.0 application.The hybrid cable length can be up to 50m without adding any relay device which is suitable for the scene of having no on-site power supply.Chip technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols, so as to enable USB2.0 equipment to share the super speed bandwidth (5Gbps) of USB3.0.
KEY FEATURES
◆ Extends USB 3.0 super speed devices up to 50 m
◆ Providing maximum 900mA/5V for the device
◆ Supports all USB 3.0 device types: control, interrupt, bulk and isochronous at up to 5 Gbps
◆ Operates with USB 3.0 super speed host controllers
◆ Supports all major operating systems including Windows, Mac OS, and Linux
◆ Number of devices can be increased using additional hubs
◆ A substantial increase in USB2.0 device bandwidth with Build-in SuperTT technology
◆ Power adapter at host is not required
◆ Ideal for a wire variety of USB devices, from printer, scanners, hard drives,and audio devices,
to touch screens, web cams, and game controllers
Applications
◆ Industrial Control
◆ Digital Signage
◆ Home Network Integration
◆ Medical Device Connectivity
◆ KVM Extension
◆ Remote Desktop USB 3.0 Connections
◆ Security: web camera, access control
◆ USB 3.0 Device Sharing: print, scan, storage
