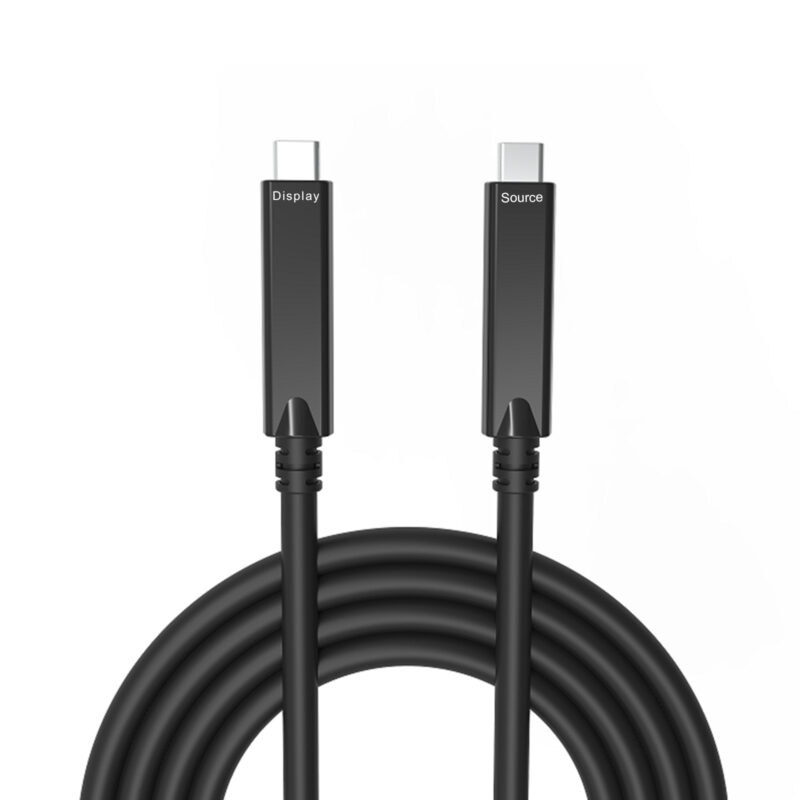

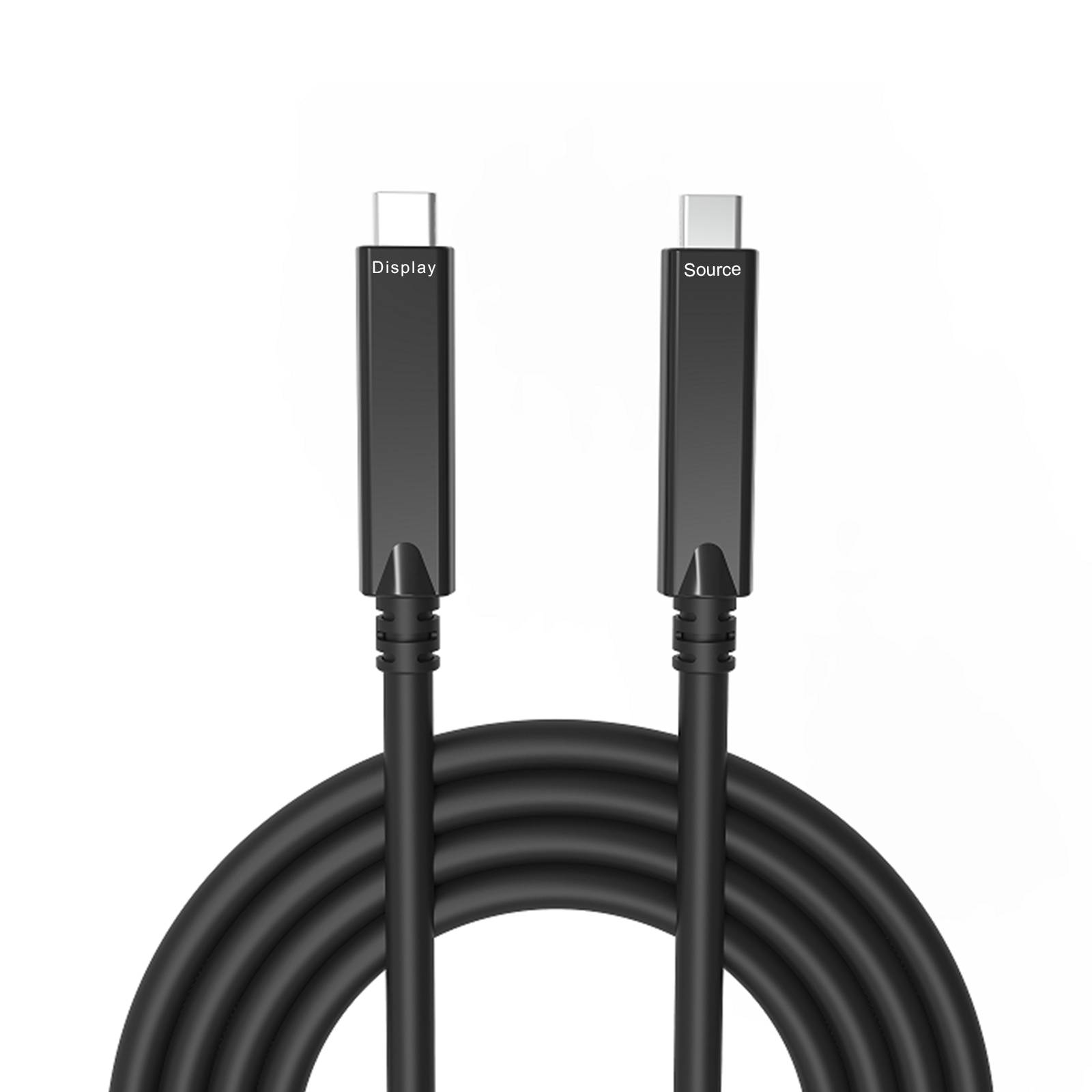

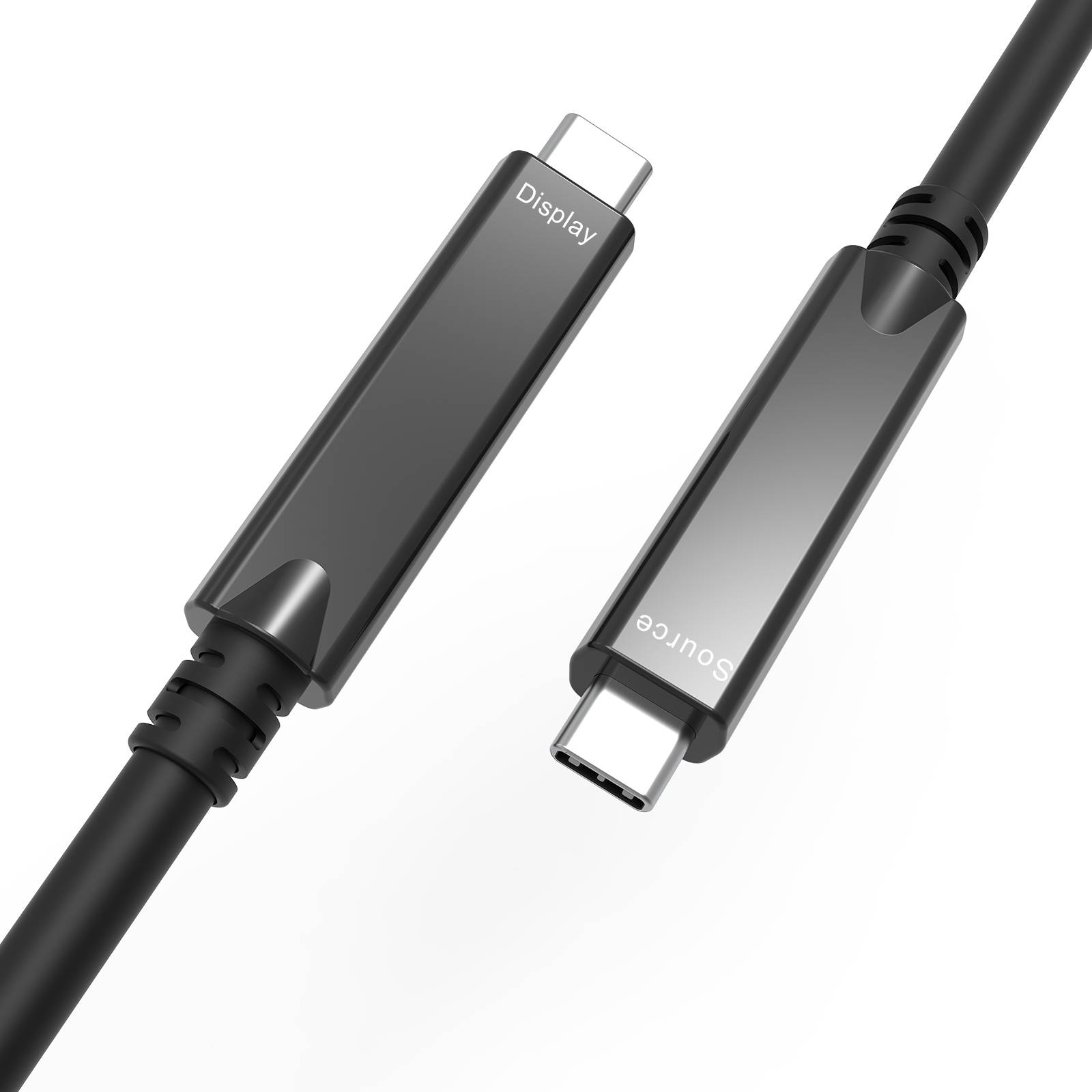

4 Lane USB 3.2 Gen 2×2 Type C- C full function Active Optical Cable Model
Description
USB 3.2 Gen 1 CM to CM Cable supports up to 10Gbps SuperSpeed+ transmission over 15 meters using OM3/OM4 multimode fiber.
Designed for high-density data center management, medical imaging archives, and industrial automation systems requiring ultra-long-distance, EMI-free USB connectivity.
• Option A : Support 4-lane DP 2.1, backward comparable to USB 2.0
• Option B: Support 2-lane DP1.4&USB3.2 10Gbps; Backward comparable to USB 2.0/1.1;
• Support PD 60W, 20V3A;5. Power Delivery (PD) 60W – Up to 10m (40W for lengths beyond 10m);
• Slim & Durable – OD: 6.5mm, flexible yet robust
• 15m Max Length – Optical fiber ensures zero signal loss;
Specifications
Features & Specs
Item Details
User Guide
FAQs
“4-Lane” refers to the internal high-speed architecture that supports:rnrnUSB 3.2 Gen 2x2 dual-channel transmission (20Gbps total)rnOptional dynamic lane allocation for DisplayPort Alt Mode in compatible devicesrnrnActual performance depends on host-device negotiation.
This is a Full-Function USB-C Active Optical Cable, supporting:rnrnDisplayPort Alt Mode video transmissionrnUp to 4K@60Hz (depending on host and lane configuration)rnHigher resolutions may be possible depending on DP version and device capability
Compared to copper cables, Active Optical Cable offers:rnrnMuch longer transmission distance (up to 10m–50m+ depending on version)rnStrong immunity to EMI/RFI interferencernLower signal attenuation for stable high-speed performancernLightweight and flexible designrnNo USB speed degradation over distance
No. The cable is powered directly through the USB port:rnrnNo external power adapter requiredrnLow-power optical conversion module built-in
It can work in USB mode on Thunderbolt portsrnHowever, it is not a Thunderbolt cablernIt does not support full Thunderbolt 40Gbps protocol
