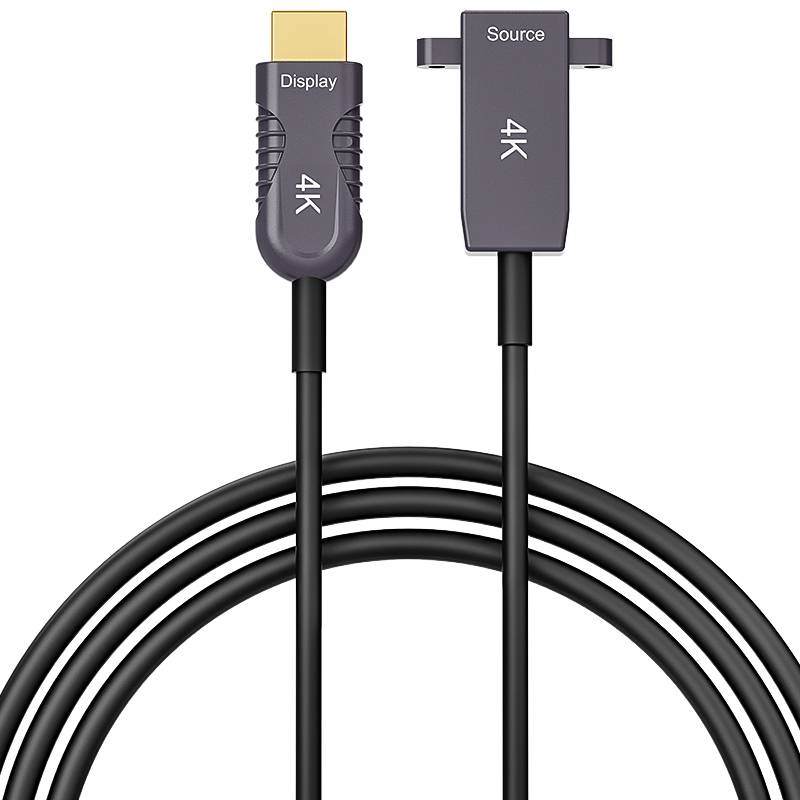

HDMI 2.0 Female to Male 10m(33ft) Active Optical Cable, 4K@60Hz, 18Gbps, up to 30 m, for HDMI Extension and System Integration
Description
The HDMI 2.0 female to male active optical cable supports stable 18Gbps 4K@60Hz transmission up to 50 m, featuring a hybrid fiber design and compact stainless-steel construction for flexible professional AV integration.
• 18Gbps bandwidth supports 4K@60Hz HDMI 2.0 transmission
• Female to male configuration for extension and embedded installations
• Hybrid fiber and copper structure with Ø4.5 mm slim stainless-steel construction
• Plug-and-play active optical design, no external power required
• Backward compatible with HDMI 1.4 and HDCP 1.4 / 2.2
Specifications
Features & Specs
Measurements
Item Details
User Guide
Frequently Asked Questions
Observe minimum bend radiusrnrnAvoid excessive pulling or crushingrnrnConfirm correct input/output directionrnrnUse certified short HDMI copper cables on the female input side
This cable is primarily used for:rnrnHDMI extension solutionsrnrnSystem-level AV integrationrnrnEmbedded or rack-mounted equipmentrnrnHDMI panel mount or I/O expansion designsrnrnOEM AV devices requiring flexible HDMI input interfaces
Unlike passive copper HDMI cables, which degrade over long distances, active optical cables use fiber to transmit the signal, maintaining high bandwidth and picture quality. The female end lets you plug in a short HDMI male cable securely and then run the long optical extension to your display or source.
Typically yes, but make sure the cable’s jacket and construction meet local in-wall fire safety and building codes (e.g., CL2/CMR rated). Also avoid extremely tight bends — fiber optics can be sensitive to small bend radii.
Yes — like any HDMI cable, an active optical cable carries both video and multi-channel digital audio including formats like Dolby Digital, DTS, etc., as supported by the connected devices.
